1,Overview：

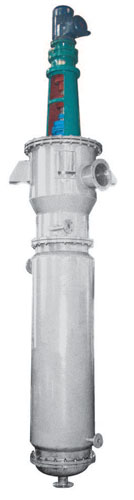

      Wiped thin film evaporator is the use of high-speed rotation of the liquid evenly distributed film evaporation or distillation carried out a highly efficient evaporation, distillation equipment, but also for deodorization, defoaming reaction and the heating, cooling and other unit operations, can be widely applied in Western pharmaceutical, food, light industry, petroleum, chemical industry, environmental protection and other industries.

    Scrapping plate centrifugal film evaporator using advanced foreign technology in the domestic field wiped thin film evaporator has a leading position in the international level. This equipment has served as a "scraper-type vacuum refining secret unit," the host, and won the National Board of Pharmacy Technology Progress Award.

2、Performance and Features：

     The device uses centrifugal rotor sliding groove, the structure is the latest foreign evaporator, the flow in the case of a small thin film can be formed, the sludge may be active on the inner wall surface of the cylinder attached to the treatment liquid in the evaporator section of a blade rapidly removed, and the blade evaporator fixed gap compared to evaporation can be increased 40% -69%, it has the following properties and characteristics：

1, the heat transfer coefficient is high, large evaporation capacity, evaporation strength up to 200kg / m2 · hr, high thermal efficiency.

2, material heating time is short, between about 5-10 seconds, and under vacuum conditions to work on more favorable heat-sensitive materials, maintaining a variety of ingredients does not produce any decomposition, to ensure product quality.

3, adapt to changes in a wide range of viscosity, low viscosity materials can be processed, the material can be as high as 100,000 annual cps (CP)

4, changing the direction of rotation of the blade grooves, the material can be adjusted to take care practice in the evaporator.

5, the cylinder wall evaporator through precision boring and polished surface is not easy to produce coke, scaling.

6, easy to operate, easy to adjust product index, in confined conditions, can be controlled for continuous production.

7, a small device footprint, simple structure, easy maintenance, easy to clean.。

The main technical parameters
