1800-6000 steam

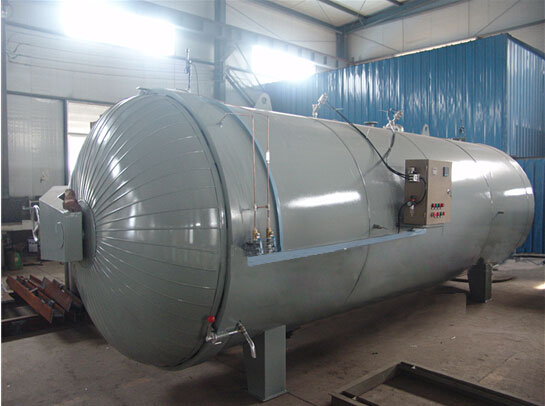

autoclave
硫化罐主要用于轮胎翻新、再生胶脱硫、电线、电缆、胶带、胶辊及其它橡胶制品的硫化；对于苯热塑化及木材烘干、中药灭菌、铝制品的氧化、竹制品碳化、陶瓷的石膏蒸压等都有广泛的应用。
技术参数：
名称\规格
800
1200
1500
1700
2000
2600
罐体内径mm
800
1200
1500
1700
2000
2600
罐体有效长度mm
22000
3000
3000
4000
5000
10000
罐盖齿数
12
12
14
14
16
24
罐盖厚度mm
10
10
10
10
16
14
罐体厚度mm
10
10
10
10
12
14
小车轨道内侧距离mm
350
535
600
790
953
560
罐内蒸汽工作压力MPa
0.8
0.8
0.8
0.8
0.8
0.55
外形尺寸mm（长x宽x高）
22766x1445
x1170
4010x1575
x1670
3960x2150
x2050
4925x2162
x2070
6200x2590
x2424
11722x3360
x4136
重量Kg
5580
2017
2950
3835
6500
16775
